14 Gauge 1.5" Crown Hog Ring Tool - Heavy Duty MTC560 Model for Upholstery, Fencing & DIY Projects - Perfect for Furniture Repair, Wire Mesh, and Animal Cage Construction
$211.75
$385
-45% OFF
Free shipping on all orders over $50
7-15 days international
25 people viewing this product right now!
30-day free returns
Secure checkout
34574460
Guranteed safe checkout
Description

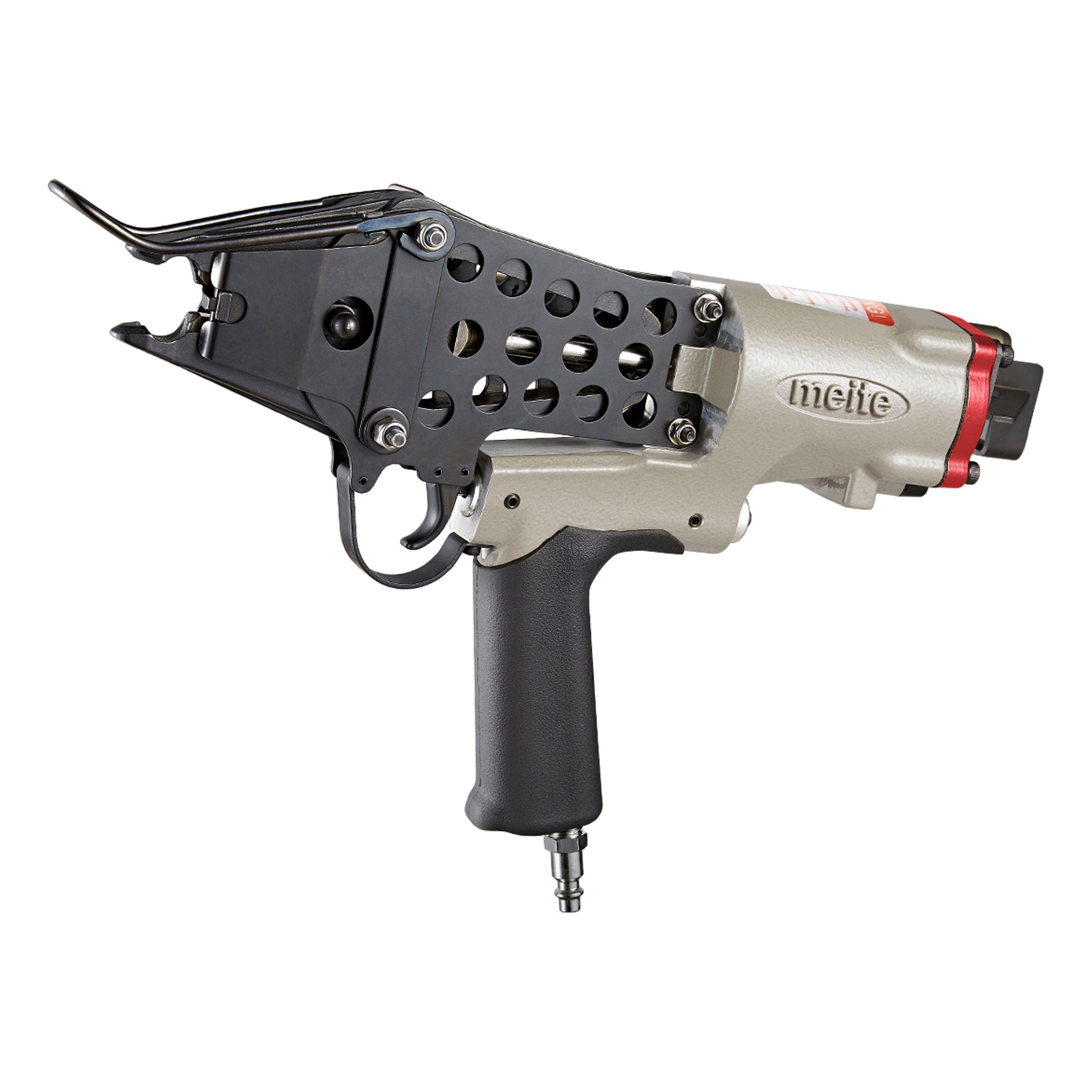

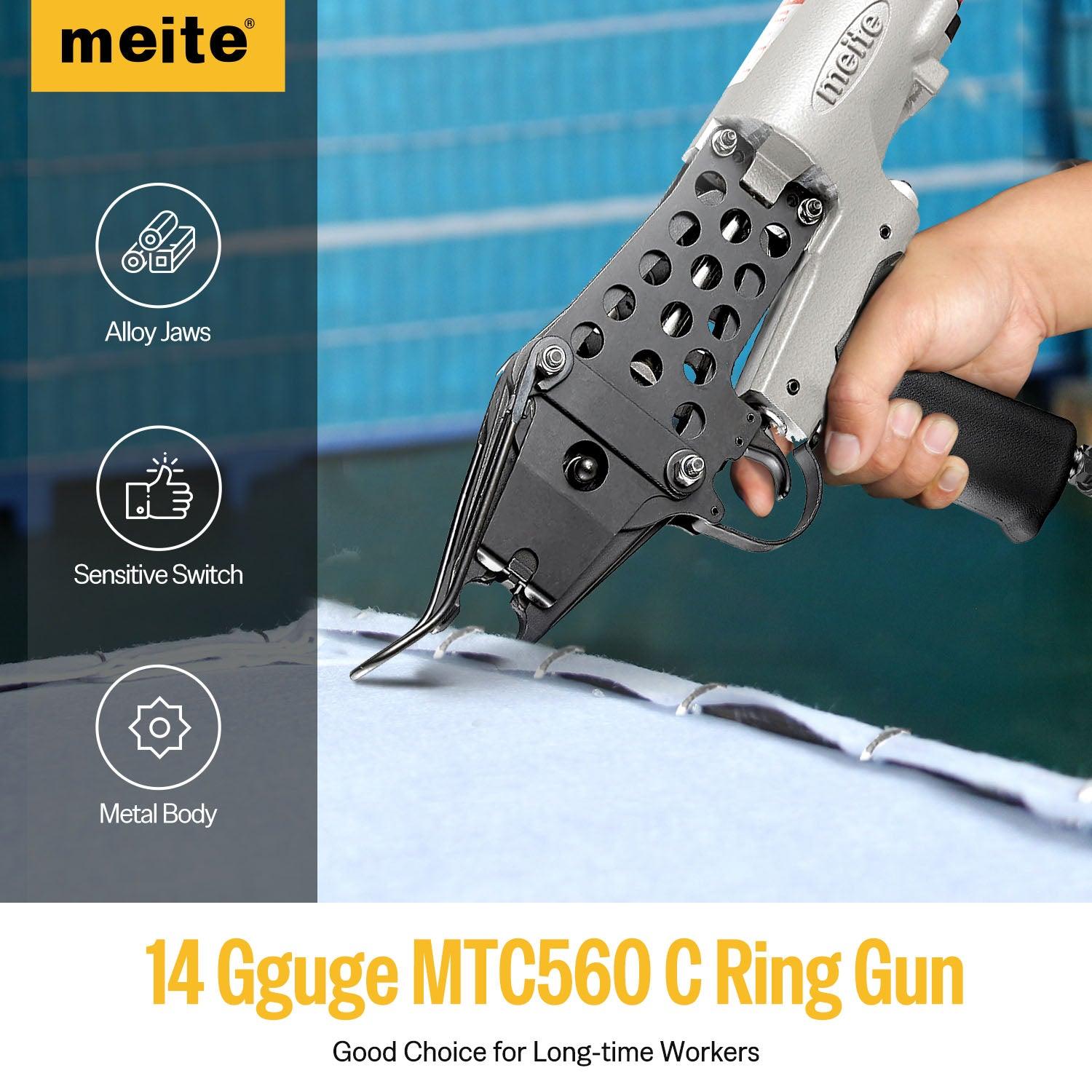

Meite MTC560 is a professional hog ring tool to provide powerful performance
- Lengthened Nose: Extended nose for hard-to-reach areas
- Large Capacity: With a large capacity and long magazine
- Comfortable Grip: Rubber grip can reduce vibration and fatigue and increase productivity
- Applications: Cages, car seats, spring mattress, bedding, etc.
Color: Yellow or gray (Please note that the colors will be sent out randomly, if you would like to specify the color please leave a message when ordering)

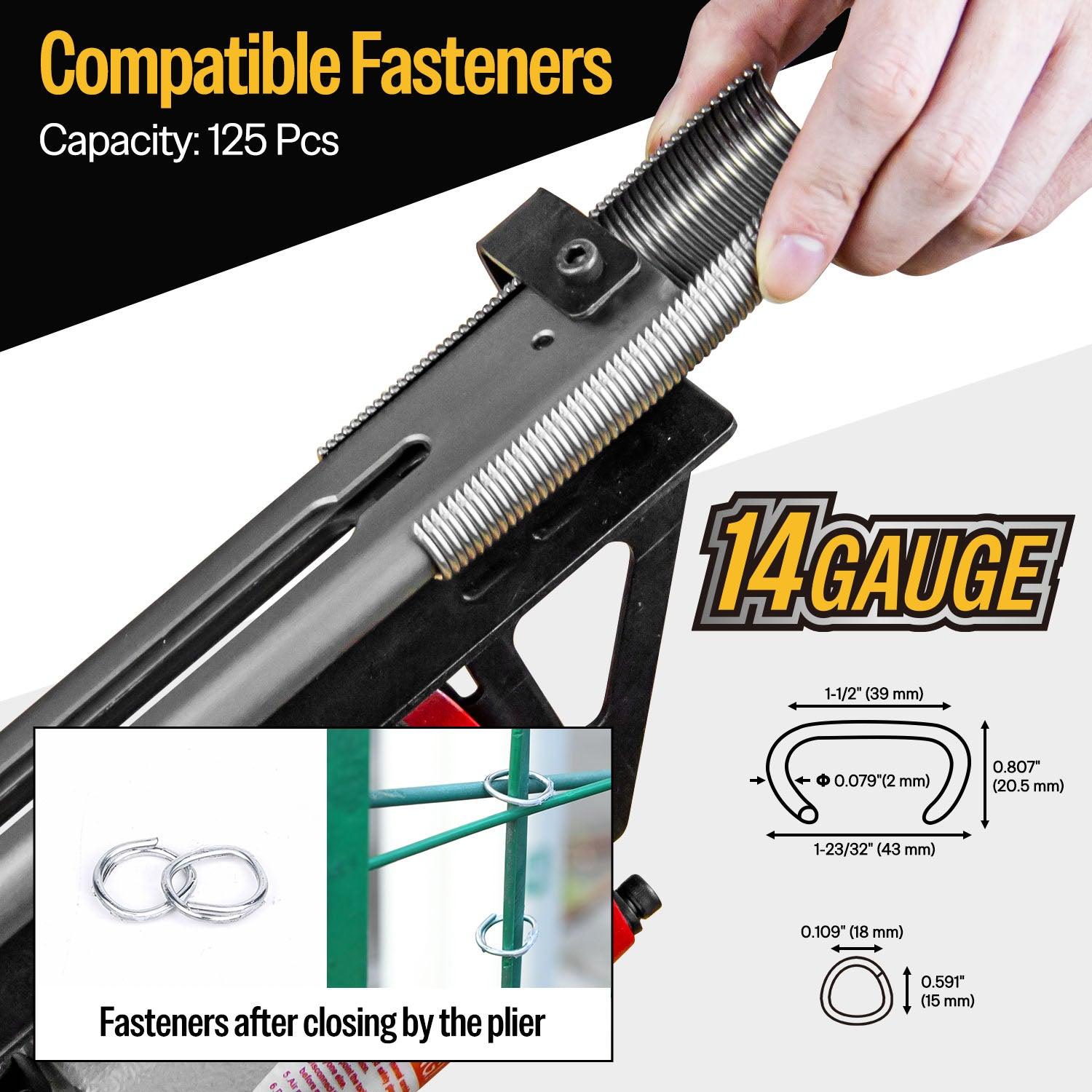

Fit Fasteners of the following specifications:
- Shank Diameter: .079" (2mm)
- Inner Crown: 1-1/2" (39 mm)
- Ouside Crown: 1-3/4" (43 mm)
- Gauge Size: 14 Gauge
- Closure Diameter: .787" - .984" (15 mm-18 mm)
| Weight (lbs) | 3.59 | 3.83 | 3.84 | 4.0 | 6.21 | 7.70 |
| Length (in.) | 13 | 13.31 | 13.74 | 14.76 | 16.61 | 17.13 |
| Width (in.) | 3.30 | 3.30 | 3.30 | 3.46 | 5.16 | 5.98 |
| Height (in.) | 7.91 | 7.91 | 7.91 | 8.50 | 9.57 | 10.75 |
| Capacity (PCS) | 100 | 100 | 100 | 100 | 125 | 100 |
| Magazine Material | Steel | Steel | Steel | Steel | Steel | Steel |
| Fastener Specifications | ||||||
| Nail Gauge | 16 | 15 | 15 | 15 | 14 | 14 |
| Crown Height | 8.7 mm | 12 mm | 12 mm | 12 mm | 20.5 mm | 27.5 mm |
| Outer Crown Width | 1/2" (12.5 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 1.69" (43 mm) | 2.46" (62.5 mm) |
| Inner Crown Width | .665" (16.9 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 1-1/2" (39 mm) | 2-1/4" (56 mm) |
| Nail Diameter | .063" (1.6 mm) | .070" (1.8 mm) | .070" (1.8 mm) | .070" (1.8 mm) | .079" (2 mm) | .079" (2 mm) |
| Closure Diameter | .102"-.141" (2.6-3.6 mm) | .217"-.236" (5.5-6.0 mm) | .346" (8.8 mm) | .346" (8.8 mm) | .590"-.709" (15-18 mm) | .71"-.79" (18-20 mm) |
