15 Gauge 3/4" Extra Extended Nose Hog Ring Pliers - Heavy Duty SC77XE Model for Fencing, Upholstery & Automotive Repair
$197.45
$359
-45% OFF
Free shipping on all orders over $50
7-15 days international
30 people viewing this product right now!
30-day free returns
Secure checkout
76117722
Guranteed safe checkout
Description

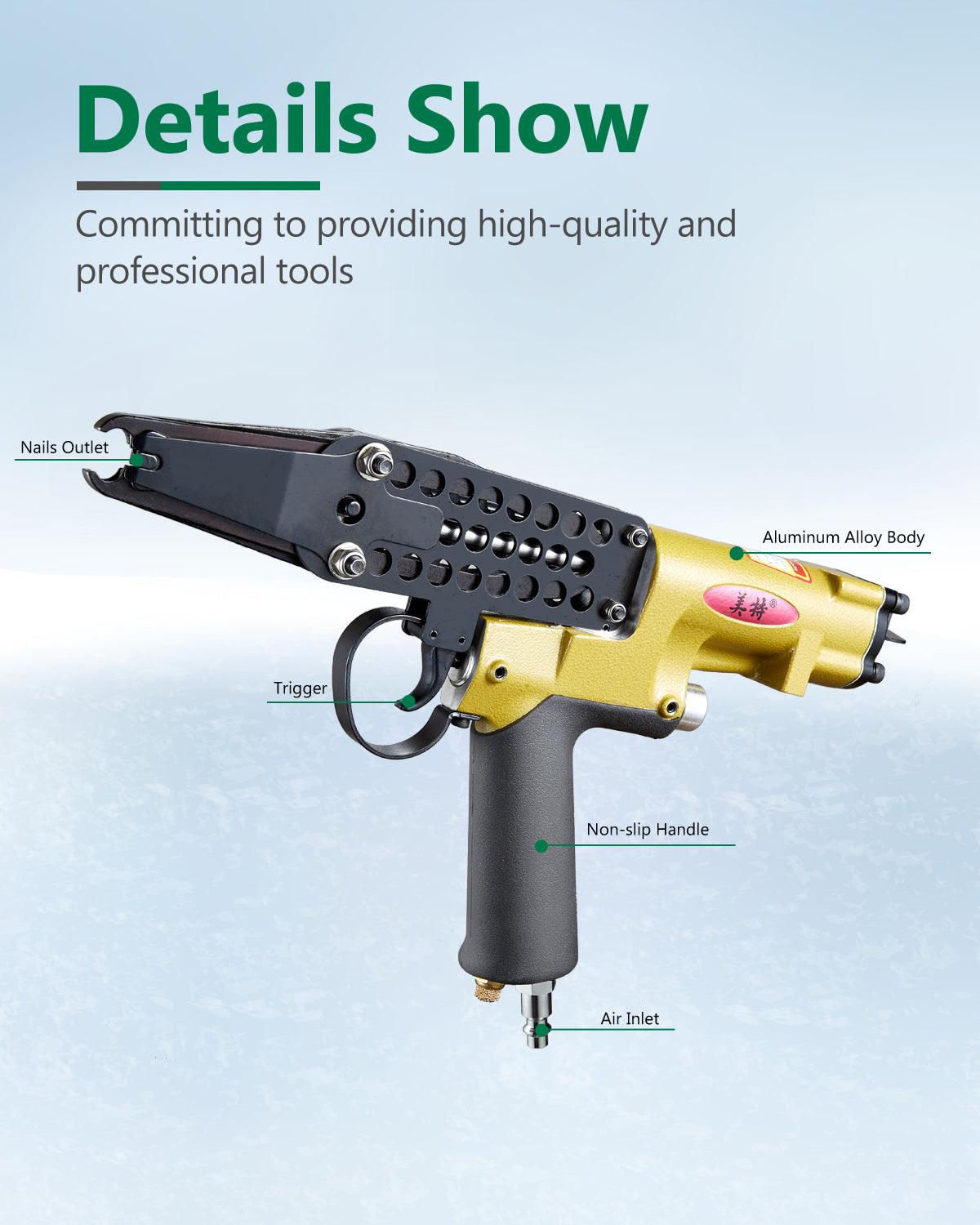

Meite 15 gauge 3/4'' extra extended nose professional hog ring/c ring tool nail gun to provide you powerful performance. An air-powered pneumatic tool, use with an air compressor.
- Extended Nose: With 9 cm longer extended nose for hard-to-reach areas
- Efficient Trigger: Upgraded trigger consistent with human mechanics
- Comfortable Grip: Rubber grip can reduce vibration and fatigue and increase productivity
- Applications: wire cages, car seats, spring mattresses, bedding, etc.
Fit Fasteners of the following specifications:
- Shank Diameter: 1.8mm (.071")
- Outside Crown: 24mm (15/16")
- Gauge Size: 15 Gauge
- Closure Diameter: 5.5mm -6.0mm (.217" - .236")
- Nail Height: 0.472"/12mm
| Weight (lbs) | 3.59 | 3.83 | 3.84 | 4.0 | 6.21 | 7.70 |
| Length (in.) | 13 | 13.31 | 13.74 | 14.76 | 16.61 | 17.13 |
| Width (in.) | 3.30 | 3.30 | 3.30 | 3.46 | 5.16 | 5.98 |
| Height (in.) | 7.91 | 7.91 | 7.91 | 8.50 | 9.57 | 10.75 |
| Capacity (PCS) | 100 | 100 | 100 | 100 | 125 | 100 |
| Magazine Material | Steel | Steel | Steel | Steel | Steel | Steel |
| Fastener Specifications | ||||||
| Nail Gauge | 16 | 15 | 15 | 15 | 14 | 14 |
| Crown Height | 8.7 mm | 12 mm | 12 mm | 12 mm | 20.5 mm | 27.5 mm |
| Outer Crown Width | 1/2" (12.5 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 1.69" (43 mm) | 2.46" (62.5 mm) |
| Inner Crown Width | .665" (16.9 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 1-1/2" (39 mm) | 2-1/4" (56 mm) |
| Nail Diameter | .063" (1.6 mm) | .070" (1.8 mm) | .070" (1.8 mm) | .070" (1.8 mm) | .079" (2 mm) | .079" (2 mm) |
| Closure Diameter | .102"-.141" (2.6-3.6 mm) | .217"-.236" (5.5-6.0 mm) | .346" (8.8 mm) | .346" (8.8 mm) | .590"-.709" (15-18 mm) | .71"-.79" (18-20 mm) |
